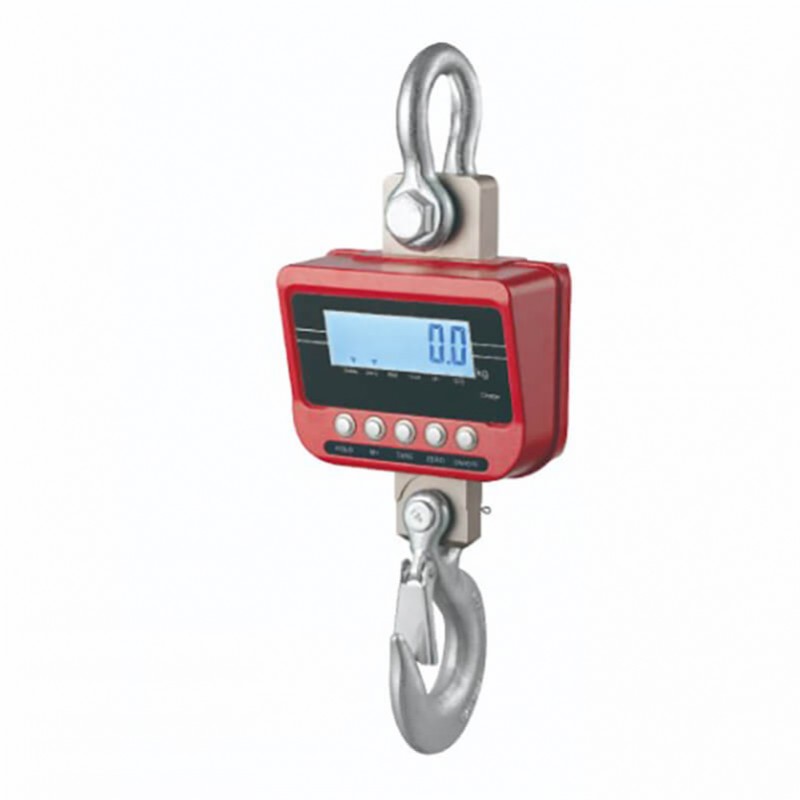

DYNAMOMETER CT

Code:

Codice	MAX Capacity	Division	Approved Division
05066A	600kg	200g	200g
05066B	1.5T	500g	500g
05066C	3T	1000g	1000g
05066D	6T	2000g	2000g
05066E	12T	5000g	5000g

Structure	Steel structure, Technical parameters: Maximum safe load 125% F.S. - Limited overload 400% F.S. - Overload alarm 100% F.S. + 9e - Operating temperature -10°C ~ 40°C
Display	18 mm backlit LCD, clearly visible
Power supply	3x Alkaline batteries code AA
Functions	Peak function, Automatic backlight, Unit of measure (kg-lb, kg-kN)
MAX Capacity	20t
Division	10kg
Dimension	(W)120 x (D)65 x (H)340mm, 60 mm diameter attachment hole
Accessories Included	Remote Control
Warranty	2 years (excluding consumables)
Packaging Dimension	(W)500 x (D)200 x (H)200mm
Gross Weight	17kg
